12 V Socket 4 -U20- /12 V Socket 5 -U26-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

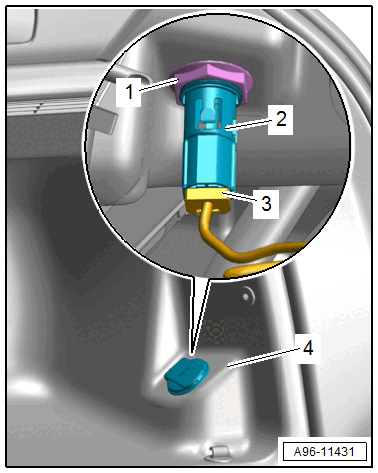

-- Open the cover -4- on the luggage compartment side trim panel.

GWWA96-11431Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Remove the nut -1-.

-- Remove the 12 V Socket -2- from the luggage compartment side trim panel cover.
