12 V Socket -U5-, REMOVING AND INSTALLING: Removing

-- Remove the front storage compartment. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .

-- The release tabs -2- on the : T40148  must engage in the openings on the cigarette lighter -3- in direction of -arrow-. To do so, the threaded rod -1- must be slid all the way down.

Fig 1: 12 V Socket 5 -U26-

Courtesy of AUDI OF AMERICA, LLC

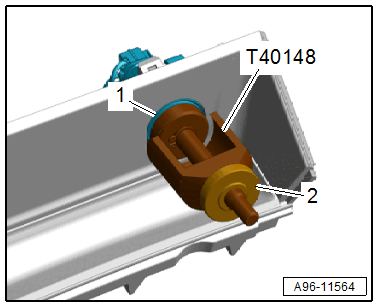

-- Slide the : T40148  all the way into the cigarette lighter -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the thumbwheel -2- at the : T40148  clockwise all the way to the end stop.

• The plunger -2- is pulled up and the release tabs -1- are spreading in the : T40148  in direction of -arrows-.
  Fig 2: Identifying Release Tool T40148 In Use

  Courtesy of AUDI OF AMERICA, LLC

-- Remove the cigarette lighter using the : T40148  from the illumination ring with the Cigarette Lighter Illumination Bulb -L28-.

-- Guide the wire out through the mount.
