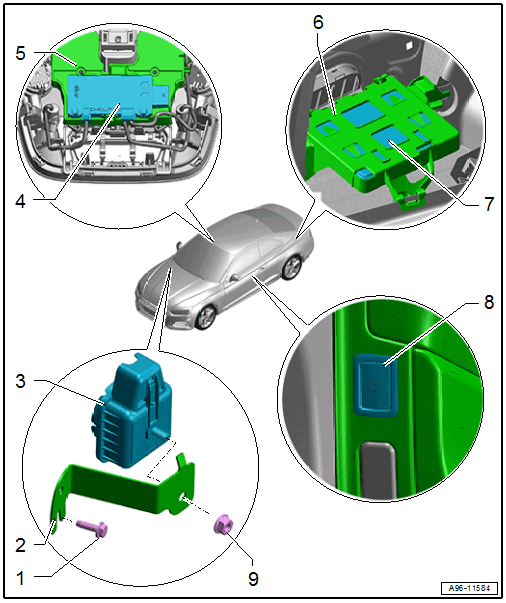

Overview - Interior Monitoring
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 8 Nm
- Bracket
- For Alarm Horn -H12-
- Alarm Horn -H12-
- Removing and installing. Refer to Alarm Horn -H12-, REMOVING AND INSTALLING .
- Anti-Theft Alarm System Sensor -G578-
- With interior monitoring individual sensor
- Removing and installing. Refer to Anti-Theft Alarm System Sensor -G578-, REMOVING AND INSTALLING .
- Front Roof Module -WX3-
- There are different versions. Refer to the Parts Information.
- Bracket
- For the comfort system central control module
- Comfort System Central Control Module -J393-
- Removing and installing. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .
- Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- Component Location Overview. Refer to OVERVIEW - CONTROLS IN FRONT DOORS .
- Nut
- 7 Nm
