Alarm Horn -H12-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

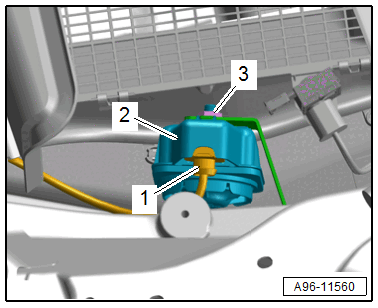

-- Remove the nut -3-.

GWWA96-11560Courtesy of AUDI OF AMERICA, LLC

-- Remove the alarm horn -2- upward.

-- Disconnect the connector -1-.
