Tail Lamp, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn the light switch to position "0".

Before Product Improvement:

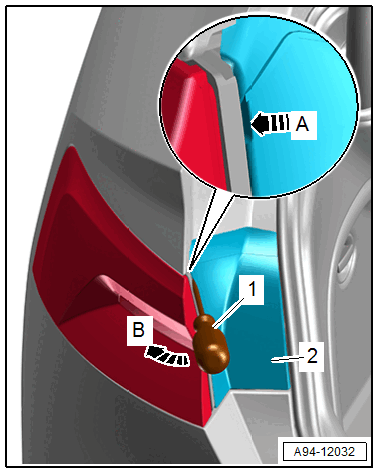

GWWA94-12032Courtesy of AUDI OF AMERICA, LLC

-- Place the screwdriver -1- on the opening in direction of -arrow A- and pry out the cover -2- from the tail lamp -arrow B- and remove.

From Product Improvement:

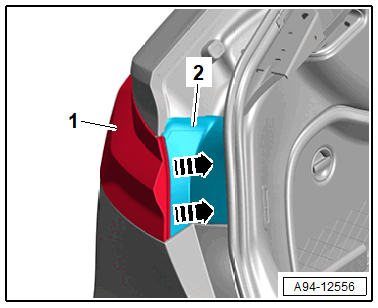

GWWA94-12556Courtesy of AUDI OF AMERICA, LLC

-- To release the catches on the cover -2-, push the cover by hand on the edge forward in direction of -arrows-.

-- Remove the cover from the tail lamp -1-.

Continuation:

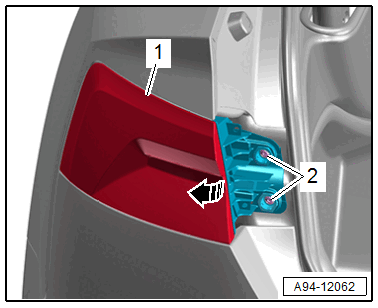

GWWA94-12062Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2-.

-- Remove the tail lamp -1- from the clip nut -arrow-.

-- Disconnect the connector.
