Tail Lamp, Removing And Installing: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

• A damaged cover must be replaced.

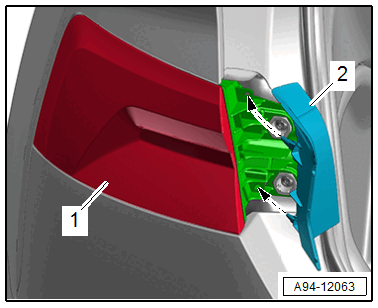

-- Place the alignment pin from the cover -2- in the cover of the tail lamp -1- in direction of -arrows-.

-- Push the cover onto the tail lamp assembly.

• The tabs must audibly engage in the tail lamp assembly.
