Rear Lid Tail Lamp, Removing And Installing: Removing

-- Turn the light switch to position "0".

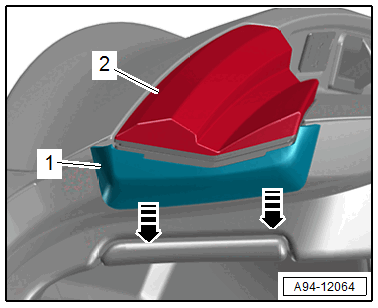

-- Remove the cover -1- from the tail lamp -2- in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

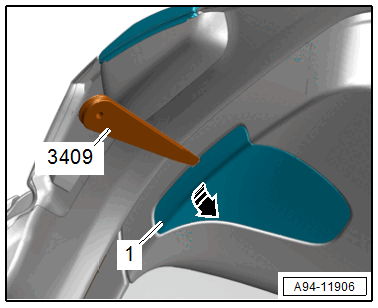

-- Coupe, Cabriolet: release the cover -1- from the clips in direction of -arrow- using the : 3409  .

Courtesy of AUDI OF AMERICA, LLC

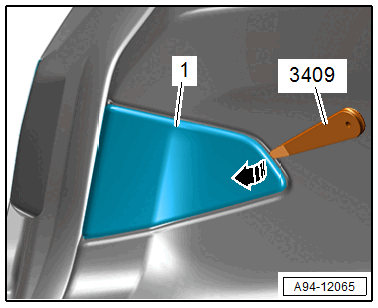

-- Sportback: pry off the cover -1- using the : 3409  in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

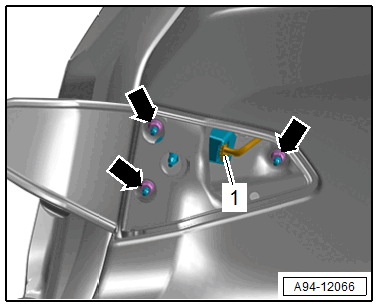

-- Remove the nuts -arrows-.

-- Remove the tail lamp.
