Overview - Rear Lid Tail Lamps

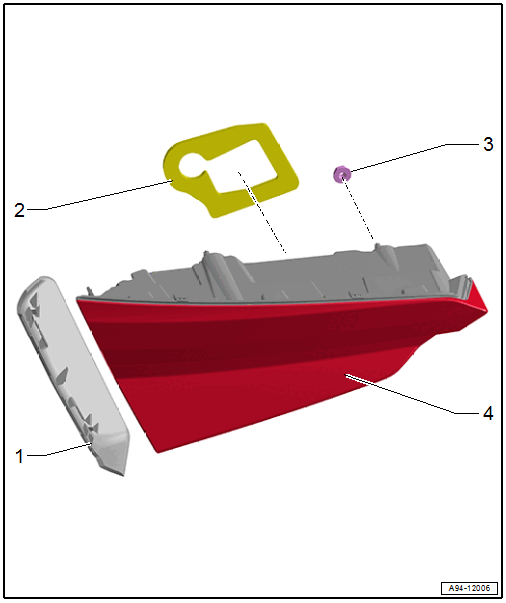

Fig 1: Exploded View Of Rear Lid Tail Lamps

Courtesy of AUDI OF AMERICA, LLC

1. Cover
   • For the tail lamp
2. Gasket
   • Replace if damaged
3. Nut
   • Tightening specifications. Refer to Fig 2.
   • Quantity: 3
4. Tail Lamp
   • Left Tail Lamp 2 -MX5-
   • Right Tail Lamp 2 -MX6-
   • Adjusting. Refer to TAIL LAMP, CORRECTING INSTALLED POSITION .
   • Removing and installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .

Tightening Specification and Sequence for the Tail Lamps

Fig 2: Tail Lamp Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts for the tail lamps to 4 Nm and in the sequence -1, 2 and 3-.
