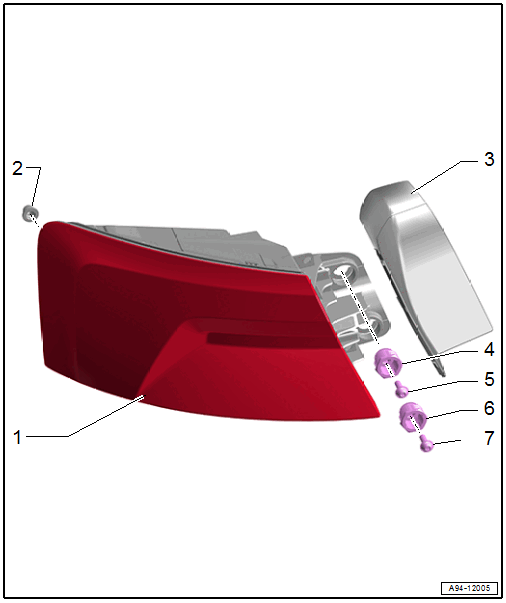

Overview - Body Tail Lamps
WARNING: This page is about a different variant/trim than selected.
- Tail Lamp
- Left Tail Lamp -MX3-
- Right Tail Lamp -MX4-
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING .
- Clip Nut
- Cover
- For the tail lamp
- Removing and installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
- Adjusting Nut
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR .
- Bolt
- 4 Nm
- Adjusting Nut
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR .
- Bolt
- 4 Nm
