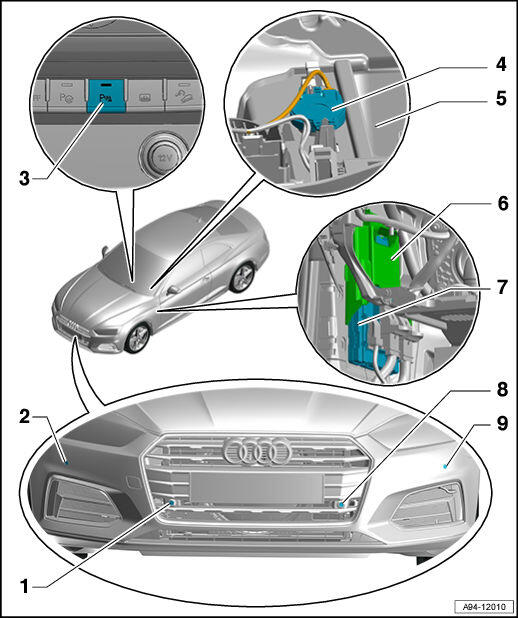

Overview - Front Parking Aid
WARNING: This page is about a different variant/trim than selected.
- Right Front Center Parking Aid Sensor -G253-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Right Front Parking Aid Sensor -G252-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Parking Aid Button -E266-
- Removing and installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING .
- Front Parking Aid Warning Buzzer -H22-
- Removing and installing. Refer to Front Parking Aid Warning Buzzer -H22-, REMOVING AND INSTALLING .
- Driver Side Lower Cover
- Bracket
- For vehicle electrical system control module
- Vehicle Electrical System Control Module -J519-
- Component Location Overview. Refer to OVERVIEW - CONTROL MODULES .
- Left Front Center Parking Aid Sensor -G254-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Left Front Parking Aid Sensor -G255-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
