Front Parking Aid Warning Buzzer -H22-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Release the retainers in direction of -arrows-.

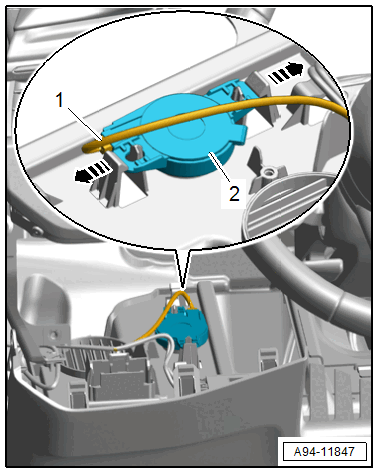

Fig 1: Locating Front Parking Aid Warning Buzzer -H22-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front parking aid warning buzzer -2-.

-- Disconnect the connector -1-.
