Rear Sensor, Removing And Installing: Removing

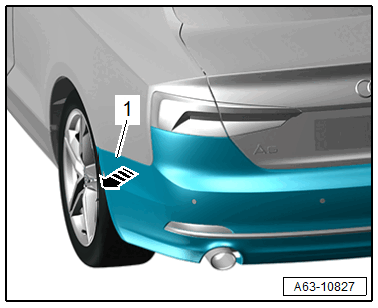

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

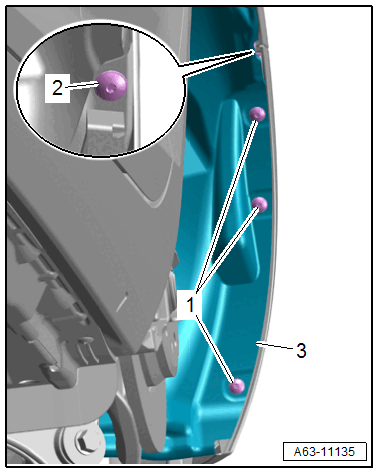

-- Push the wheel housing liner -3- to the side.

-- Remove the bolt -2-.

-- Disengage the side piece -1- on the side panel outward in direction of -arrow- until the rear sensor is accessible.

Courtesy of AUDI OF AMERICA, LLC

-- Press both tabs in direction of -arrows- to the side and press the sensor -1- inward from the outside.

Fig 1: Removing Front Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- by sliding the retainer -3- toward the rear and pressing the release down.
