Overview - High-Mounted Brake Lamp

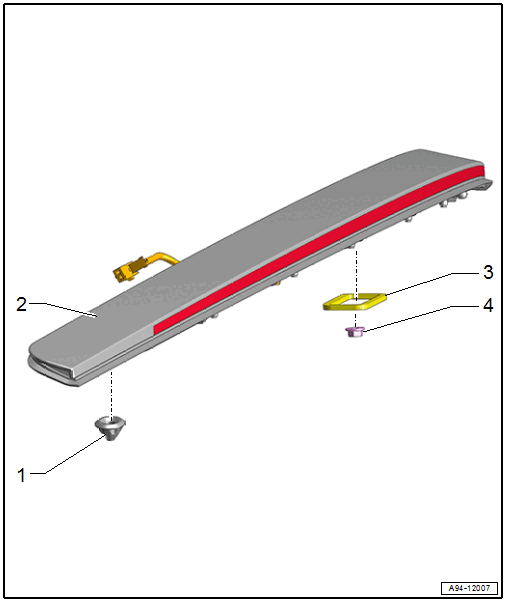

Fig 1: Exploded View Of High-Mounted Brake Lamp

Courtesy of AUDI OF AMERICA, LLC

1. Clip Nut
   • Quantity: 2
2. High-Mounted Brake Lamp
   • High-Mounted Brake Lamp Bulb -M25-
   • Removing and installing, Coupe. Refer to HIGH-MOUNTED BRAKE LAMP BULB, REMOVING AND INSTALLING, COUPE .
   • Removing and Installing, Sportback. Refer to HIGH-MOUNTED BRAKE LAMP BULB, REMOVING AND INSTALLING, SPORTBACK .
   • Removing and Installing, Cabriolet. Refer to HIGH-MOUNTED BRAKE LAMP BULB, REMOVING AND INSTALLING, CABRIOLET .
3. Seal
   • Replace after removing.
   • Quantity: 5
4. Nut
   • Tightening sequence. Refer to Fig 2.
   • Quantity: 5

High-Mounted Brake Lamp Bulb - Tightening Specification and Sequence

Fig 2: High-Mounted Brake Lamp Bulb - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts in sequence -1 to 5- as shown.

• Coupe: 3 Nm.
• Sportback: 2.5 Nm.
