High-Mounted Brake Lamp Bulb, Removing And Installing, SPORTBACK: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear lid upper trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .

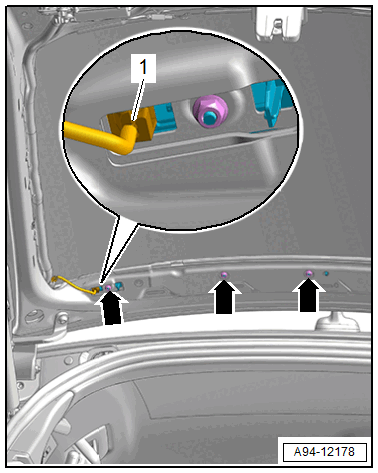

-- Disconnect the connector -1-.
-- Remove the nuts -arrows-.

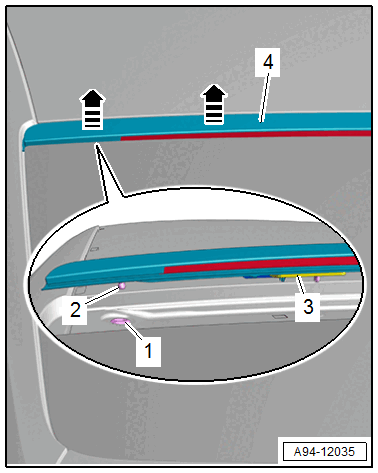

-- Pry out the retaining pin -2- on the outside using the : T10383/1 from the clip nuts -1-.
-- Pry up the lamp -4- for the high-mounted brake lamp using : T10383/1 from the body in direction of -arrows-. This will loosen the seals -3- from the bonding.
