High-Mounted Brake Lamp Bulb, Removing And Installing, Coupe: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the headliner. Refer to HEADLINER, REMOVING AND INSTALLING .

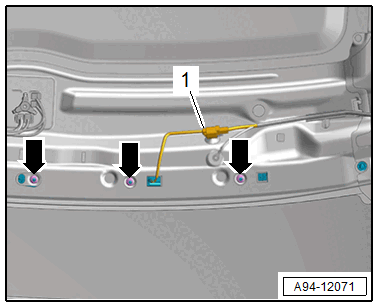

-- Open the mounting tabs and disconnect the connector -1-.
-- Remove the nuts -arrows-.
-- Pry out the retaining pin -2- on the outside using the : T10383/1 from the clip nuts -1-.
-- Pry up the lamp -4- for the high-mounted brake lamp using : T10383/1 from the body in direction of -arrows-. This will loosen the seals -3- from the bonding.
