Overview - Headlamp Mount

WARNING: This page is about a different variant/trim than selected.

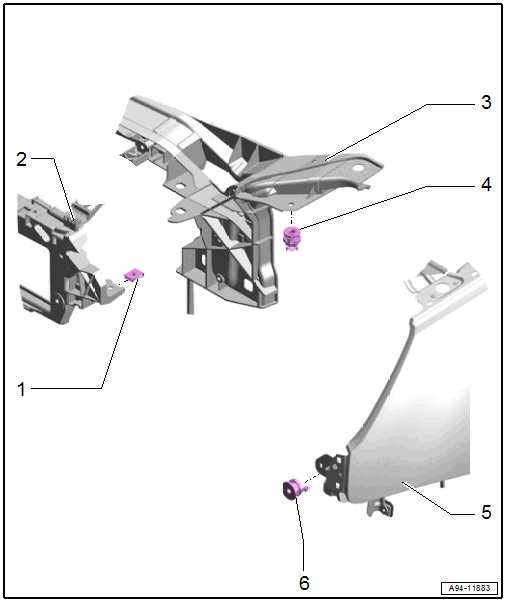

Fig 1: Exploded View Of Headlamps, Headlamp Mount
GWWA94-11883Courtesy of AUDI OF AMERICA, LLC
  1. Spring Nut
  2. Bracket
  3. Lock Carrier
    • For mounting the headlamp
  4. Adjuster
    • For adjusting the headlamp housing to the body contour
  5. Fender
  6. Adjuster
    • For adjusting the headlamp housing to the body contour
