Left/Right Hid Headlamp Bulb -L13- / -L14-, Removing And Installing: Removing
-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
-- Remove the bolts -arrows-.
-- Remove the housing cover -1-.
Extremely dangerous due to high-voltage.
When the headlamps are switched on, the HID headlamp components marked with the yellow high-voltage symbol are under high voltage. Electric shock may occur if components are contacted.
- Never touch the components marked with the yellow high-voltage symbols when the lighting is switched on.
- When performing procedures, switch off the ignition and all electrical equipment, and place the ignition key outside of the vehicle.
- Do not operate the flashers.

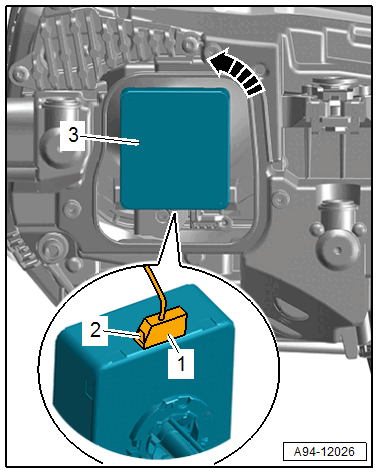

-- Turn the HID headlamp bulb -3- counter-clockwise in direction of -arrow- and remove it from the housing.
-- Press the release button -2- and disconnect the connector -1-.
