Left/Right Front Fog Lamp Bulb -L22- / -L23-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Right side of the vehicle: Remove the air filter housing. Refer to OVERVIEW - AIR FILTER HOUSING [CWGD, DECA] or OVERVIEW - AIR FILTER HOUSING [CYMC] .

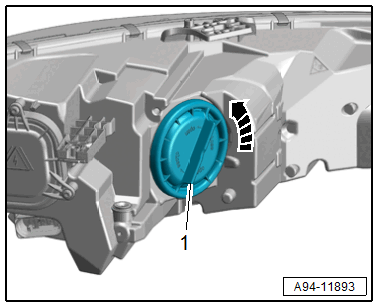

-- Turn the housing cover -1- counter-clockwise in direction of -arrow- and remove it from the headlamp housing.

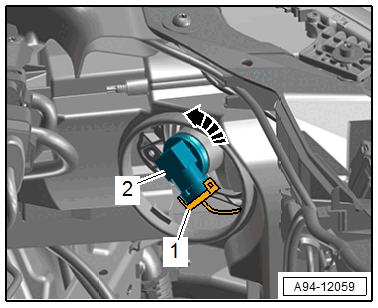

-- Turn the bulb socket -2- counter-clockwise in direction of -arrow- and remove.
-- Disconnect the connector -1-.
