Left/Right Light Control Module -J1018- / -J1023-, Removing And Installing, Led Headlamp: Removing
WARNING: This page is about a different variant/trim than selected.
-- Vehicles with 6-cylinder engine, left side of the vehicle: remove the Engine Control Module -J623- from the bracket and place to the side. Refer to ENGINE CONTROL MODULE -J623-, REMOVING AND INSTALLING [CWGD, DECA] or ENGINE CONTROL MODULE -J623-, REMOVING AND INSTALLING [CYMC] .

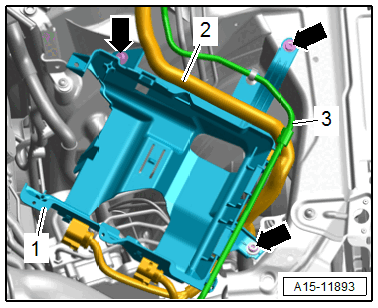

-- Free up the coolant line -3- and wiring harness -2-.
-- Remove the bolts -arrows- and remove the engine control module bracket -1-.
-- Right side of the vehicle: Remove the air filter housing. Refer to OVERVIEW - AIR FILTER HOUSING [CWGD, DECA] or OVERVIEW - AIR FILTER HOUSING [CYMC] .

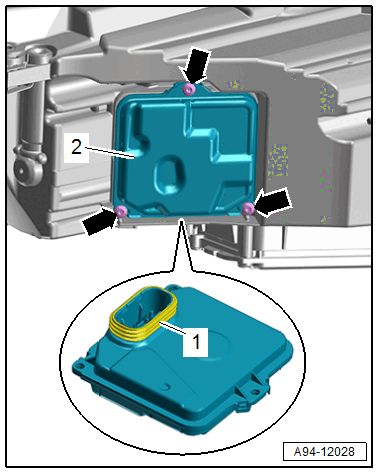

-- Remove the bolts -arrows-.
-- Remove the power output module -2-.
