Left/Right Light Control Module -J1018- / -J1023-, Removing And Installing, Hid Headlamp: Removing

WARNING: This page is about a different variant/trim than selected.

-- Vehicles with parking heater on right side of the vehicle: Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the front wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

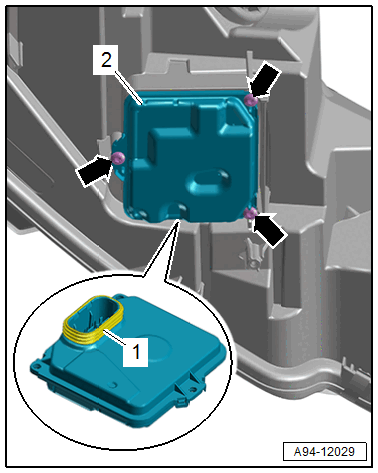

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the power output module -2-.
