Headlamp Housing Repair Kit, Installing
WARNING: This page is about a different variant/trim than selected.
TIP:
Headlamp mounting tabs that have broken off can be replaced by installing the repair set. Completely replacing the headlamp is therefore not necessary.
There are different repair kits for the left and right headlamps. Refer to Parts Information.
Procedure
-- Remove the headlamp with the broken tabs. Refer to HEADLAMP, REMOVING AND INSTALLING .
-- Remove the rest of the broken mounting tab on the headlamp housing.

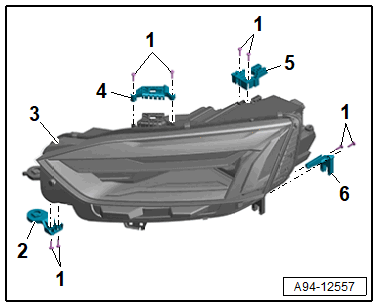

-- Position the brackets -2, 4, 5 and 6- from the repair kit on the headlamp housing -3- and fasten with the bolts -1-.
-- Adjust the headlamp. Refer to HEADLAMP, ADJUSTING .
Tightening Specifications
- Refer to OVERVIEW - HEADLAMPS
