Left/Right Daytime Running Lamp And Position Lamp Led Module -L176- / -L177-, Removing And Installing, Led Headlamp: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

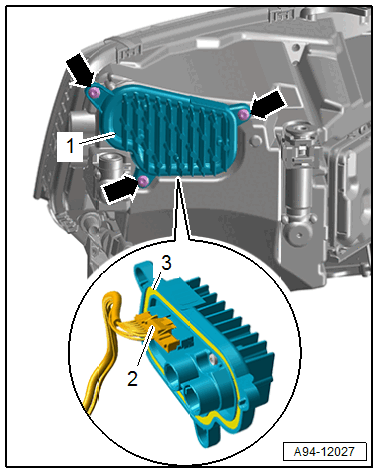

-- Remove the bolts -arrows-.
-- Remove the LED module -1- from the headlamp housing.
-- Press the release button and disconnect the connector -2-.
