Left/Right Daytime Running Lamp And Position Lamp Led Module -L176- / -L177-, Removing And Installing, Hid Headlamp: Removing
-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

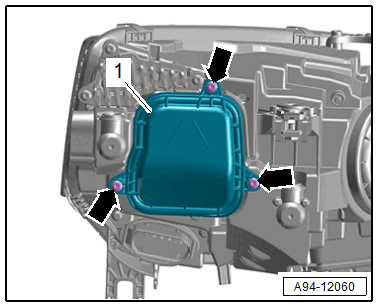

-- Remove the bolts -arrows-.
-- Remove the housing cover -1-.
Extremely dangerous due to high-voltage.
When the headlamps are switched on, the HID headlamp components marked with the yellow high-voltage symbol are under high voltage. Electric shock may occur if components are contacted.
- Never touch the components marked with the yellow high-voltage symbols when the lighting is switched on.
- When performing procedures, switch off the ignition and all electrical equipment, and place the ignition key outside of the vehicle.
- Do not operate the flashers.

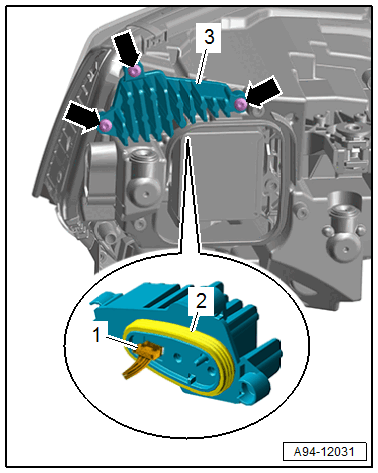

-- Remove the bolts -arrows-.
-- Remove the LED module -3- from the headlamp housing.
-- Disconnect the connector -1-.
