Brake Master Cylinder, Removing And Installing: Installing

Install in reverse order of removal and note the following:

Always replace the self-locking nuts and bolts.

Replace damaged bolts and nuts.

Clean the bolts and nuts before reusing.

• Replace the seal after removal.
• Do not let any brake fluid run into the brake booster.
• The actuator pin -Item  ) OVERVIEW - BRAKE BOOSTER/BRAKE MASTER CYLINDER - List Item: Actuator Pin for the brake lamp switch must be inserted in the brake master cylinder.

Always replace the self-locking nuts and bolts.

Replace damaged bolts and nuts.

Clean the bolts and nuts before reusing.

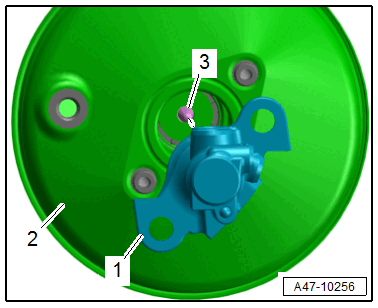

-- When inserting the brake master cylinder -1-, make sure that the pressure rod -3- is seated correctly in the brake booster -2-.

Courtesy of AUDI OF AMERICA, LLC

-- If necessary, have a second technician press the brake pedal downward slightly. This allows the brake master cylinder to be guided into the pushrod more easily.

-- Install the tower brace. Refer to TOWER BRACE, REMOVING AND INSTALLING .

-- Install the brake fluid reservoir. Refer to BRAKE FLUID RESERVOIR, REMOVING AND INSTALLING .

-- Fill the brake fluid reservoir up to the "MIN" mark.

Fig 1: Brake Fluid Reservoir

Courtesy of AUDI OF AMERICA, LLC

-- Remove all cloths from the vehicle that were previously placed down.

-- Bleed the brake system. Refer to HYDRAULIC SYSTEM, BLEEDING .
