Brake Carrier, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

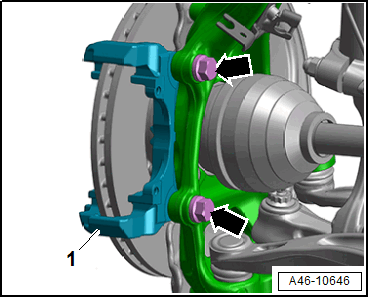

GWWA46-10646Courtesy of AUDI OF AMERICA, LLC

-- Remove the brake pads. Refer to BRAKE PADS, REMOVING AND INSTALLING, STEEL BRAKES 1LA/1LB .

-- Remove the bolts -arrows- and remove the brake carrier -1-.
