Starter, Removing And Installing, Vehicles With 2.0L TDI Engine (0K4): Removing

-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K4 AND VH0 .

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the plenum chamber bulkhead. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .

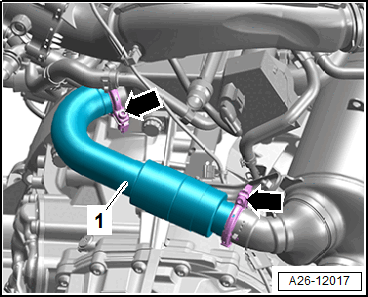

-- Loosen the screw-type clamps -arrows- and remove the EGR pipe -1-.

Courtesy of AUDI OF AMERICA, LLC

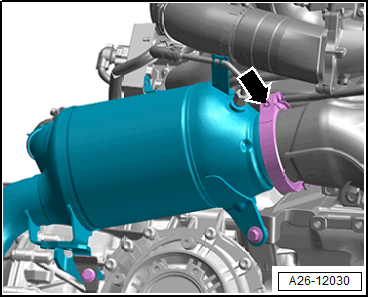

-- Loosen the screw-type clamp -arrow-.

Courtesy of AUDI OF AMERICA, LLC

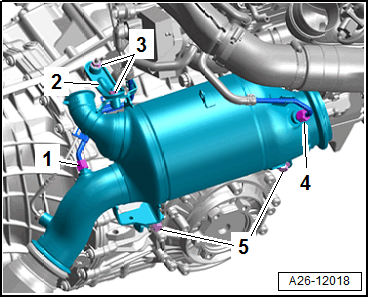

-- Remove the nuts -3- and then the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the right engine support. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING [CWGD] / ENGINE SUPPORT, REMOVING AND INSTALLING [CYMC] / ENGINE SUPPORT, REMOVING AND INSTALLING [DPAA] .

-- Remove the bolts -5- and set the particulate filter to the right side.

-- Remove the bolt -arrow- from above.

Fig 1: Identifying Plenum

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -5- and nut -4-.

Fig 2: Identifying Starter Overview

Courtesy of AUDI OF AMERICA, LLC

-- Remove the starter -1-, disconnect the connector -3- and free up the B+ wire -2-.
