Battery -A-, Removing And Installing, Battery In Luggage Compartment, 0K0: Removing

-- Switch off the ignition.

-- Lift the luggage compartment floor.

Coupe, Sportback:

-- If equipped, remove the spare tire and vehicle tool kit bracket.

-- Remove the nut -1-, the cover -3- with the vehicle tool kit bracket -2-.

Sportback:

-- If equipped, remove the subwoofer. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .

Cabriolet:

-- Remove the storage compartment for the wind deflector.

-- Remove the lock carrier trim panel. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the vehicle jack mount box.

-- Move the hydraulic unit for convertible top operation slightly to the side.

Continuation for all:

Courtesy of AUDI OF AMERICA, LLC

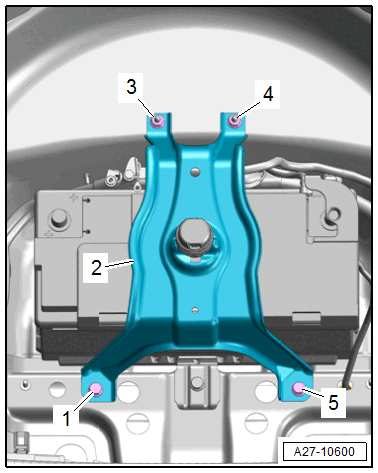

-- Remove the nuts -3 and 4- and the bolts -1 and 5-.

-- Remove the retaining bracket -2-.

-- Open the cover -3- over the battery negative terminal.

-- Loosen the nut -1- several turns and remove the battery ground cable clamp -2- from the battery terminal.

-- Open the cover -1- over the battery positive terminal.

-- Loosen the nut -3- several turns and remove the battery positive cable terminal clamp -2- from the battery terminal.

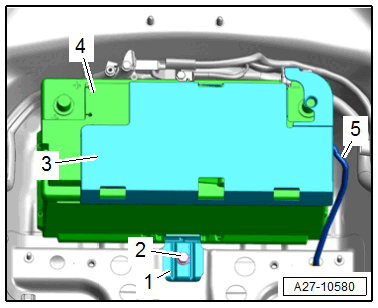

-- Remove the bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the battery bracket -1-.

-- Remove the battery cover -3-.

-- Remove the central venting system hose -5-.

-- Lift the battery -4- upward and out of the luggage compartment.

• The disposal regulations for batteries and sulfuric acid must be followed when disposing of batteries. Refer to Battery .
