Battery -A-, Removing And Installing, 0K4 And VH0: Removing

Fig 1: Battery Holder With Bolt

Courtesy of AUDI OF AMERICA, LLC

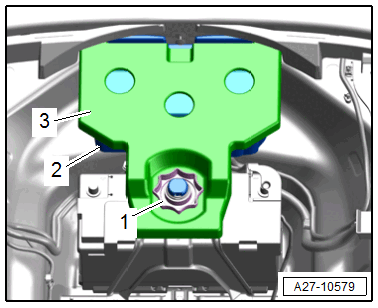

-- Remove the nut -1-, the cover -3- with the vehicle tool kit bracket -2-.

-- Sportback: if equipped, remove the subwoofer. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .

-- Remove the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

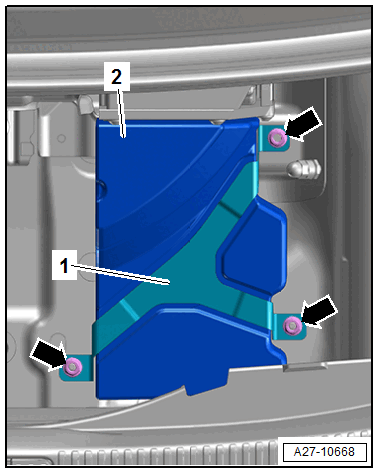

-- Remove the rear crashpad -2- with the retaining bracket -1-.

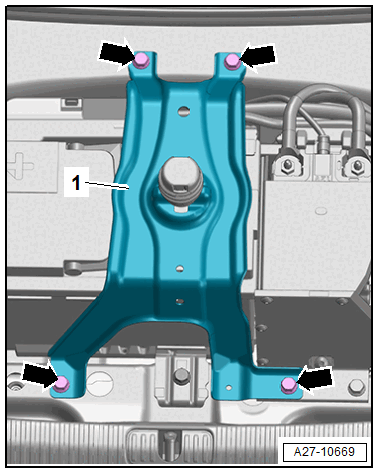

-- Remove the screws -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the retaining bracket -1-.

-- Loosen the nut -6- several turns and remove the battery ground cable terminal -4- from the battery terminal.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -5-.

-- Check that it is de-energized on the jump-start connection point using the multimeter. Refer to Check that it is de-energized on the jump-start connection point using the multimeter: .

-- Open the cover -3- over the battery positive terminal.

-- Loosen the nut -1- several turns and remove the battery positive cable terminal clamp -2- from the battery terminal.

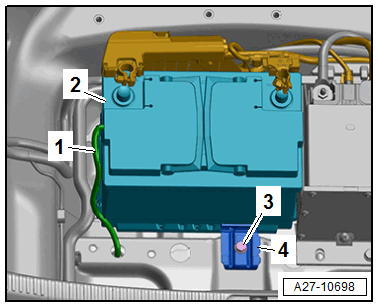

-- Remove the bolt -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the battery bracket -4-.

-- Disconnect the central venting system hose -1-.

-- Lift the battery -2- up and out of the luggage compartment.

• The disposal regulations for batteries and sulfuric acid must be followed when disposing of batteries. Refer to Battery .
