Auxiliary Battery -A1-, Removing And Installing, VH0 And VH0: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:

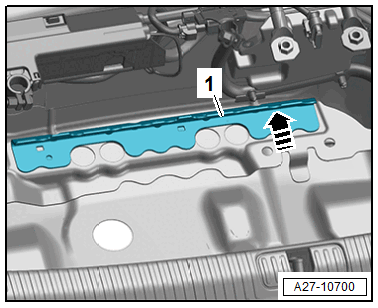

-- Push the protective housing with the Auxiliary Battery -A1- all the way on the retaining bracket -1- -arrow- so that the baseboard engages in the retaining bracket.
- The protective housing must not be able to move anymore.
-- Check the protective housing for secure fit after installation.
-- If the Auxiliary Battery -A1- was replaced, a new Auxiliary Battery -A1- must be adapted.
Procedure
-- Connect the Vehicle Diagnostic Tester.
-- Select the Diagnostic mode and start the diagnosis.
-- Select the Test plan tab.
-- Select the Select individual test button and select the following tree structure consecutively:
- Body
- Electrical system
- 0001 - OBD-capable systems
- 0080 - Battery regulation, auxiliary storage 1 -A1 (12V Li-Ion)
- 0080 - Battery regulation, auxiliary storage 1 (12V Li-Ion), functions
- 0080 - Control module, Replacing, A1 - Auxiliary Battery
-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.
