Battery -A-, Disconnecting And Connecting, 0K2: Notes
WARNING: This page is about a different variant/trim than selected.
Disconnecting
-- Switch off the ignition.

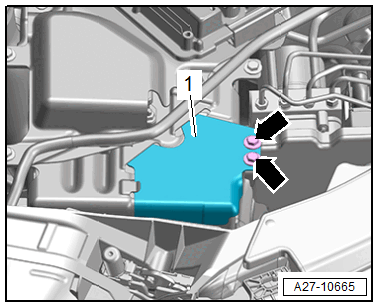

-- Remove the bolts -arrows-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the cover -1- to the side.

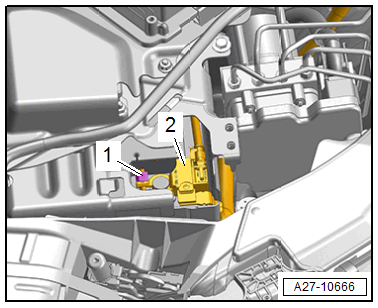

-- Loosen the nut -1- several turns and remove the battery ground cable clamp -2- from the battery terminal.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Cover the negative terminal.
