Battery Tray, Removing And Installing, 0K4 And VH2: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the Battery, 48 V -A6-. Refer to Battery, 48 V -A6-, REMOVING AND INSTALLING, 0K4 AND VH2 .
-- Remove the nuts -arrows-.
-- Remove the Wire Junction -TV67- -1- and move to the side with the wires attached.

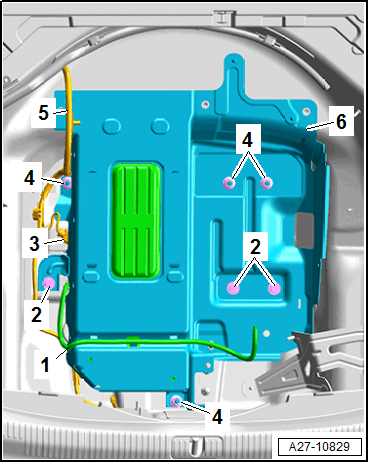

-- Disconnect the connector -3- and free up the wiring harness -5-.
-- Free up the central venting system hose -1-.
-- Remove the nuts -4- and bolts -2-.
-- Remove the battery tray -6-.
