Battery Tray, Removing And Installing, 0K2: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the Battery -A-. Refer to Battery -A-, REMOVING AND INSTALLING, 0K2 .

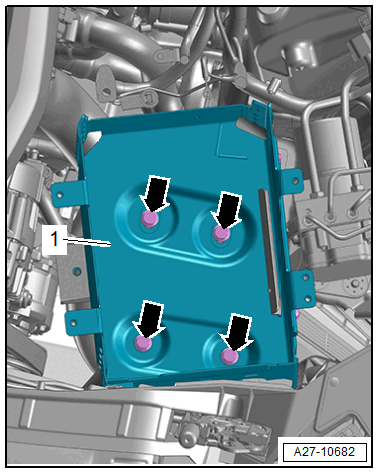

-- Remove the screws -arrows-.

GWWA27-10682Courtesy of AUDI OF AMERICA, LLC

-- Remove the battery tray -1-.
