Side Cushion, Removing And Installing, A5 Cabriolet: Removing

WARNING: This page is about a different variant/trim than selected.

-- Fold the rear seat backrest forward.

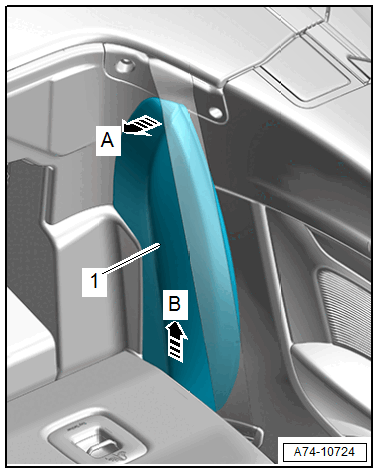

-- Pull the side cushion -1- at the top inward slightly in direction of -arrow A- and pull and remove it upward out of the mount at the same time in direction of -arrow B-.

GWWA74-10724Courtesy of AUDI OF AMERICA, LLC
