Overview - Cover And Cushion, Rear Seat Backrest, A5 Coupe/SPORTBACK

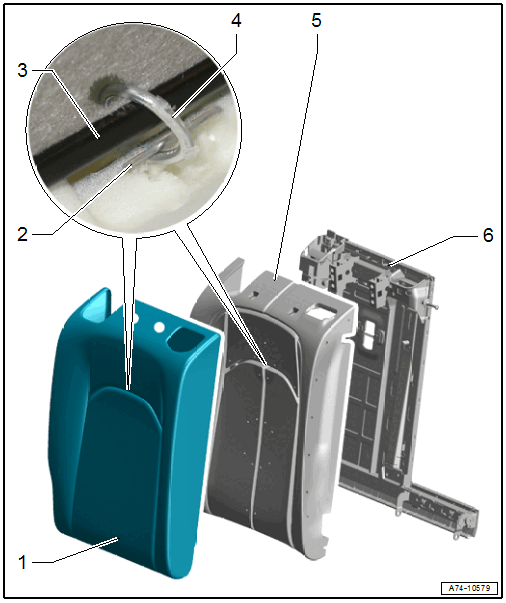

Fig 1: Exploded View Of Cover & Cushion, Folding Backrest

Courtesy of AUDI OF AMERICA, LLC

1. Cover
   • Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST, A5 COUPE/SPORTBACK .
   • Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, REAR SEAT BACKREST .
2. Wire
   • Encapsulated in cushion
   • For securing the cover to the cushion
3. Contour Wire
   • Sewn into cover
   • For securing the cover to the cushion
4. Upholstery Clip
   • Always replace
   • For securing the cover to the cushion
   • Install at the same location with Upholstery Clip Pliers :VAG1634  .
5. Cushion
   • Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST, A5 COUPE/SPORTBACK .
   • Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, REAR SEAT BACKREST .
6. Right Rear Seat Backrest
