Overview - Cover And Cushion, Bench Seat, A5 Coupe/SPORTBACK

NOTE:

The bench seat without storage tray is shown.

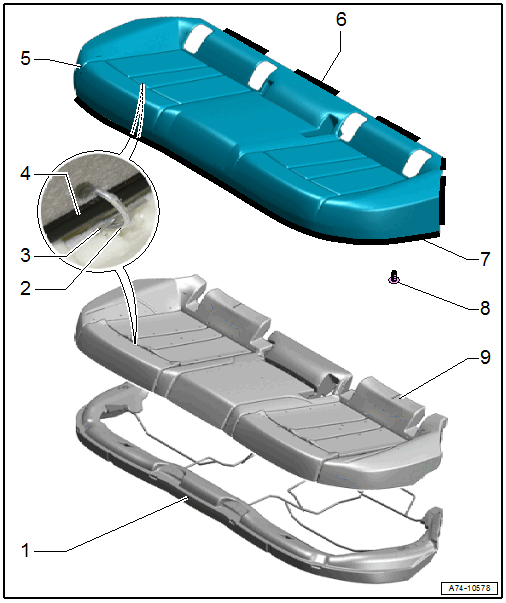

Fig 1: Exploded View Of Cover & Cushion, Sport Bench Sea

Courtesy of AUDI OF AMERICA, LLC

1. Seat Frame
   • With the molded piece
2. Upholstery Clip
   • Always replace
   • For securing the cover to the cushion
   • Install at the same location with Upholstery Clip Pliers :VAG1634  .
3. Wire
   • Encapsulated in cushion
   • For securing the cover to the cushion
4. Contour Wire
   • Sewn into cover
   • For securing the cover to the cushion
5. Cover
   • Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, BENCH SEAT, A5 COUPE/SPORTBACK .
   • Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, BENCH SEAT .
   • Check that there are no folds after installing
6. Molding
   • Sewn into cover
   • For engaging the cover to the seat frame
   • Make sure it fits correctly in the seat frame
7. Clamping Strip
   • Sewn into cover
   • For attaching the cover to the seat frame
   • Flip over 180° and engage in the groove on the molded piece. Refer to Installing .
8. Clip
9. Cushion
   • Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, BENCH SEAT, A5 COUPE/SPORTBACK .
   • Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, BENCH SEAT .
