Overview - Cover And Cushion, Bench Seat, A5 Cabriolet

WARNING: This page is about a different variant/trim than selected.

NOTE:

The bench seat with the storage tray is shown as the example.

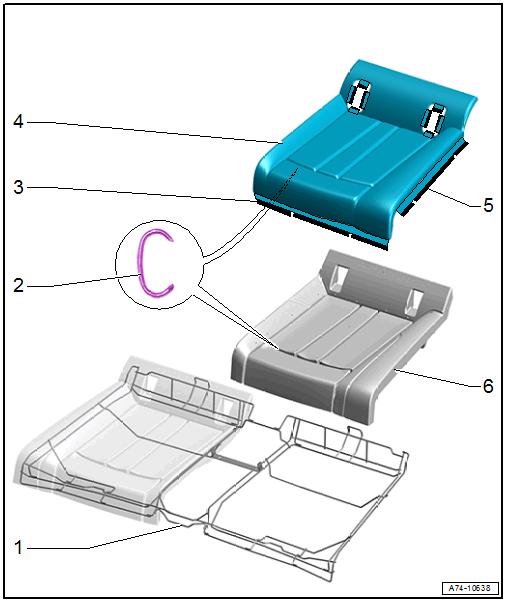

Fig 1: Exploded View Of Cover And Cushion, Bench Seat, A5 Cabriolet

Courtesy of AUDI OF AMERICA, LLC

Seat Frame
Upholstery Clip
- Always replace
- For securing the cover to the cushion
- Install at the same location with Upholstery Clip Pliers :VAG1634 .
Molding
- Sewn into cover
- For engaging the cover to the seat frame
- Make sure it fits correctly in the seat frame
Cover
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, BENCH SEAT, A5 CABRIOLET .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, BENCH SEAT .
- Check that there are no folds after installing
Molding
- Sewn into cover
- For engaging the cover to the seat frame
- Make sure it fits correctly in the seat frame
Cushion
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, BENCH SEAT, A5 CABRIOLET .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, BENCH SEAT .
