Cover And Cushion, Separating, Bench Seat: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the cover and cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .

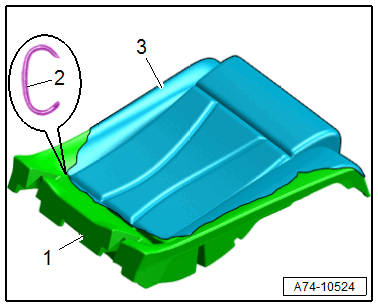

-- Pull off the cover -3- from the cushion -1- as far as possible and cut upholstery clips -2- using pliers.

GWWA74-10524Courtesy of AUDI OF AMERICA, LLC

-- Cut through the remaining upholstery clips.

-- Remove the cover from the cushion.
