Backrest Heating Element, Removing And Installing

WARNING: This page is about a different variant/trim than selected.

NOTE:

The old heating elements remain on the cushion and will be covered over by the new heating elements.

Procedure

Courtesy of AUDI OF AMERICA, LLC

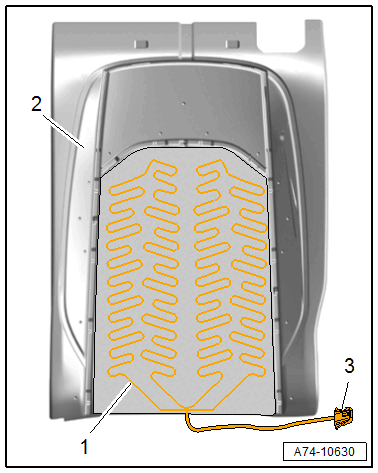

A5 Coupe/Sportback:

-- Cut the wire -3- directly at the old heating element.

-- Align the new heating element -1- on the cushion -2-.

-- Peel the protective film off the heating element. Be careful not to damage the heating element.

-- Glue the heating element so that it aligns with the old heating element and is not wrinkled.

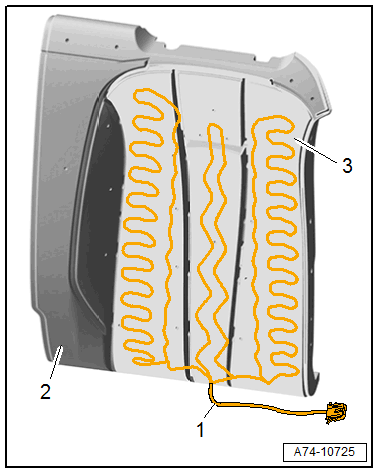

Audi A5 Cabriolet:

Courtesy of AUDI OF AMERICA, LLC

-- Cut the wire -1- directly at the old heating element.

-- Align the new heating element -3- on the cushion -2-.

-- Peel the protective film off the heating element. Be careful not to damage the heating element.

-- Glue the heating element so that it aligns with the old heating element and is not wrinkled.

Further installation is the reverse order of removal.
