Backrest Panel/Backrest Hinge, Removing And Installing, A5 Cabriolet: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, A5 CABRIOLET .
-- Remove the rear seat backrest from the area of the backrest hinge. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST, A5 CABRIOLET .
CAUTION:
Risk of damaging the spacer.
- Proceed very carefully when clipping and unclipping.

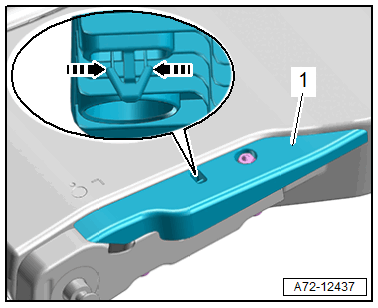

-- Remove the spacer -1-, to do this release the tabs in direction of -arrows- with a small screwdriver through the opening.

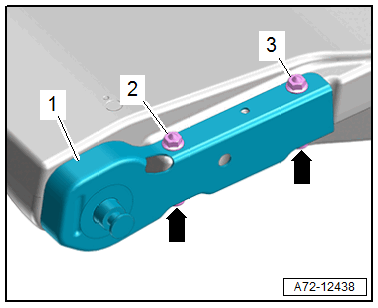

-- Remove the nuts -2 and 3- and the bolts -arrows-.
-- Remove the backrest hinge -1- from the backrest panel.
