Backrest Frame, Removing And Installing, A5 Cabriolet: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, A5 CABRIOLET .
-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING, A5 CABRIOLET .

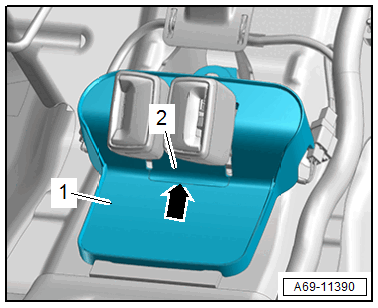

-- Open the tab -2- on the seat belt latch cover at the seal -arrow-.
-- Slide the tab under the seat belt latches upward and through.
-- Disengage the seat belt latch cover -1- and removed upward over the seat belt latches.
-- If installed, disconnect the seat belt switch connectors.

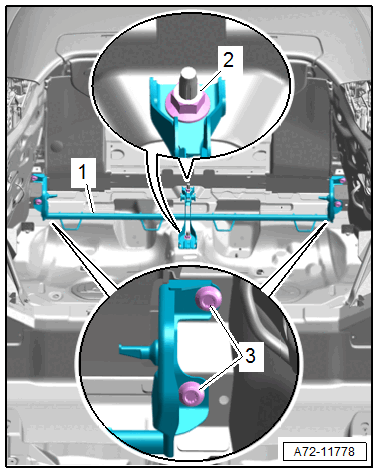

-- Remove the left and right bolts -3- for the backrest frame.
-- Remove the backrest frame nuts -2-.
-- Disengage the backrest frame -1- from the threaded pin and remove from the vehicle.
