Overview - Rear Seat Backrest, A5 Cabriolet

WARNING: This page is about a different variant/trim than selected.

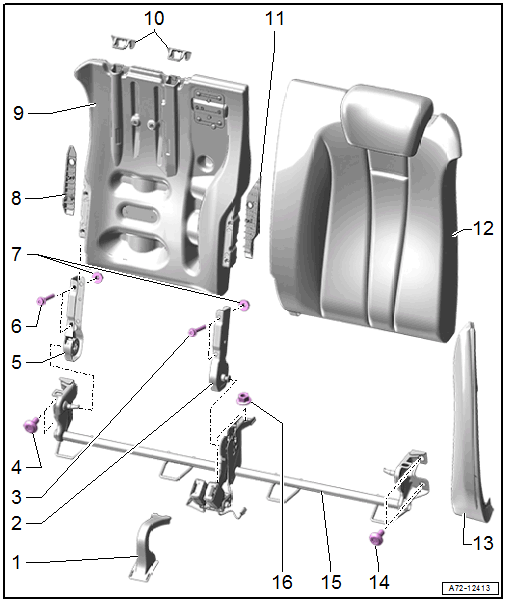

Fig 1: Exploded View Of Rear Seat Backrest, A5 Cabriolet

Courtesy of AUDI OF AMERICA, LLC

Cover
- Removing and Installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, A5 CABRIOLET .
- Clipped in the backrest frame
Inner Backrest Hinge
- Removing and Installing. Refer to BACKREST PANEL/BACKREST HINGE, REMOVING AND INSTALLING, A5 CABRIOLET .
Bolt
- Quantity: 2
Bolt
- 32 Nm
- Quantity: 2
Outer Backrest Hinge
- Removing and Installing. Refer to BACKREST PANEL/BACKREST HINGE, REMOVING AND INSTALLING, A5 CABRIOLET .
Bolt
- Quantity: 2
Nut
- 6.6 Nm
- Quantity: 4
Outer Spacer
- Removing and Installing. Refer to BACKREST PANEL/BACKREST HINGE, REMOVING AND INSTALLING, A5 CABRIOLET .
Backrest Shell
- Removing and Installing. Refer to BACKREST PANEL/BACKREST HINGE, REMOVING AND INSTALLING, A5 CABRIOLET .
Upper Spacer
Inner Spacer
- Removing and Installing. Refer to BACKREST PANEL/BACKREST HINGE, REMOVING AND INSTALLING, A5 CABRIOLET .
Rear Seat Backrest
- Removing and Installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, A5 CABRIOLET .
Side Cushion
- Removing and Installing. Refer to SIDE CUSHION, REMOVING AND INSTALLING, A5 CABRIOLET .
Bolt
- 32 Nm
- Quantity: 2
Backrest Frame
- Removing and Installing. Refer to BACKREST FRAME, REMOVING AND INSTALLING, A5 CABRIOLET .
Nut
- 45 Nm
- Quantity: 2
