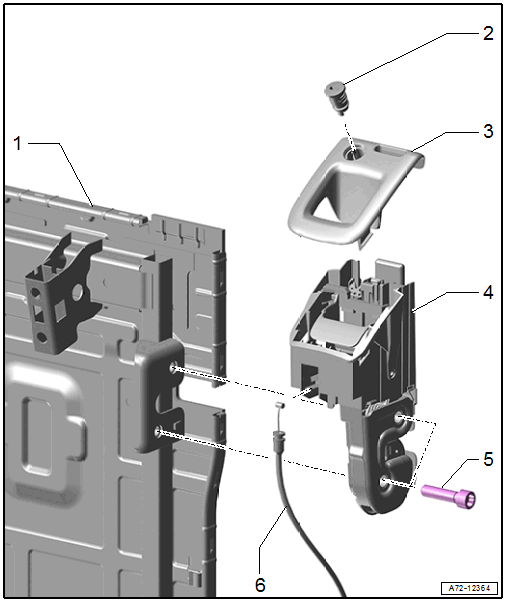

Overview - Locking Mechanism, A5 Coupe/SPORTBACK
WARNING: This page is about a different variant/trim than selected.
- Backrest Frame
- For left rear seat backrest
- Right backrest frame with center rear seat backrest mount
- Lock Cylinder
- Equipped on some models
- Removing and Installing. Refer to LOCK CYLINDER, REMOVING AND INSTALLING .
- Remove before installing the lock cylinder protective cap
- Trim
- For locking and lock cylinder
- Removing and Installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING, A5 COUPE/SPORTBACK .
- Press on until it engages audibly
- Locking Mechanism
- For the rear seat backrest
- Removing and Installing. Refer to REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING, A5 COUPE/SPORTBACK .
- Bolt
- 25 Nm
- Quantity: 2
- Release Cable
- For remote backrest release
- Equipped on some models
