Overview - Headrest And Headrest Guide, A5 Cabriolet

WARNING: This page is about a different variant/trim than selected.

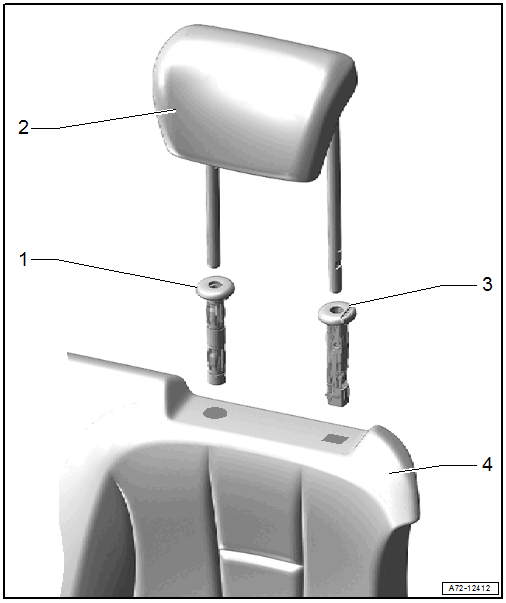

Fig 1: Exploded View Of Headrest And Headrest Guide, A5 Cabriolet
GWWA72-12412Courtesy of AUDI OF AMERICA, LLC
  1. Headrest Guide
    • Right side with locking spring
    • Cannot be removed without being damaged
    • Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, A5 CABRIOLET .
    • The guide tab must engage in the mount cut-out on the headrest guide
    • Pushed in until the retainers engage properly
  2. Headrest
  3. Headrest Guide
    • Left side with the headrest height adjustment button
    • Cannot be removed without being damaged
    • Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, A5 CABRIOLET .
    • The guide tab must engage in the mount cut-out on the headrest guide
    • Pushed in until the retainers engage properly
  4. Rear Seat Backrest
