Headrest Guide, Removing And Installing, A5 Cabriolet: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear headrest. Refer to HEADREST, REMOVING AND INSTALLING .

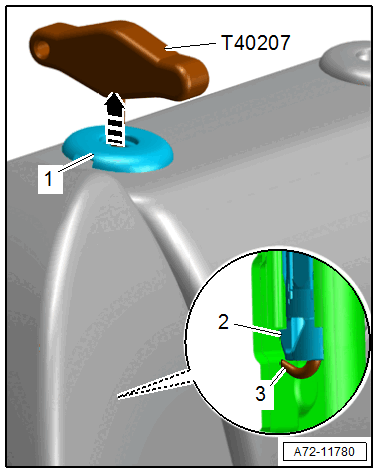

Headrest Guide with Release Button:

-- Engage the :T40207  in the headrest guide retainer -2- the hook -3- points to the center backrest.

-- Release the headrest guide retainer, to do this pull on the :T40207  and at the same time remove the headrest guide -1- from the backrest shell -arrow-.

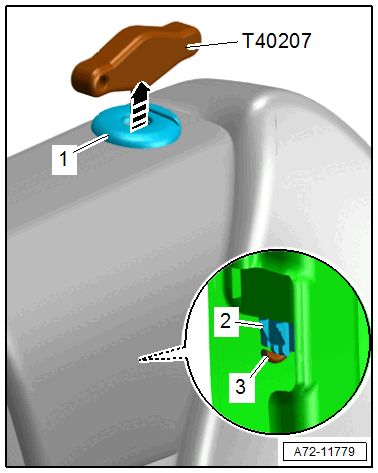

Headrest Guide without Release Button:

Courtesy of AUDI OF AMERICA, LLC

-- Engage the :T40207  in the headrest guide retainer -2- the hook -3- points to the rear.

-- Release the headrest guide retainer, to do this pull on the :T40207  and at the same time remove the headrest guide -1- from the backrest shell in direction of -arrow-.
