Overview - Seat Pan, Seat Without Seat Depth Adjuster

WARNING: This page is about a different variant/trim than selected.

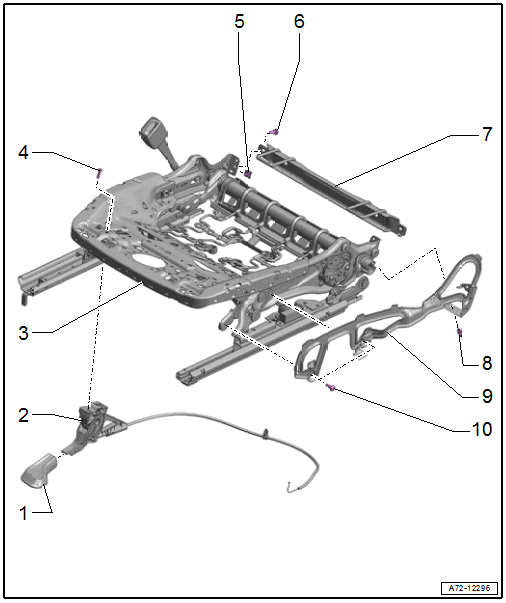

Fig 1: Exploded View Of Seat Pan, Seat Without Seat Depth Adjuster

Courtesy of AUDI OF AMERICA, LLC

Handle
- Replace after removing.
- For manual seat forward/back adjustment
- Removing and Installing. Refer to SEAT FORWARD/BACK ADJUSTER, REMOVING AND INSTALLING, SEAT FORWARD/BACK ADJUSTMENT HANDLE .
Release Cable
- For manual seat forward/back adjustment
- Unit with lever
- Removing and Installing. Refer to SEAT FORWARD/BACK ADJUSTER, REMOVING AND INSTALLING, SEAT FORWARD/BACK ADJUSTER RELEASE CABLE .
Seat Pan
- Upper and lower frame cannot be separated
- To replace, install the electrical and electronic components and wires in the new seat pan
Bolt
- 3.5 Nm
- Quantity: 2
Spring Nut
- Replace any damaged or deformed spring nuts
- Attached in the seat pan
- Quantity: 2
Bolt
- Tightening specification. Refer to -Item 4- OVERVIEW - FRONT CHILD SEAT ANCHORS - Bolt .
- Quantity: 2
Child Seat Anchor
- Equipped on some models: front passenger seat only
- Bolted to the seat pan
- Check after an accident. Refer to CHILD SEAT ANCHORS, CHECKING AFTER COLLISION .
- Replace damaged or deformed child seat anchor
- Overview. Refer to OVERVIEW - FRONT CHILD SEAT ANCHORS .
Expanding Clip
Bracket
- For seat side trim on side sill side
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .
Bolt
- 7.5 Nm
- Quantity: 2
