Overview - Seat Pan, Seat With Seat Depth Adjuster

WARNING: This page is about a different variant/trim than selected.

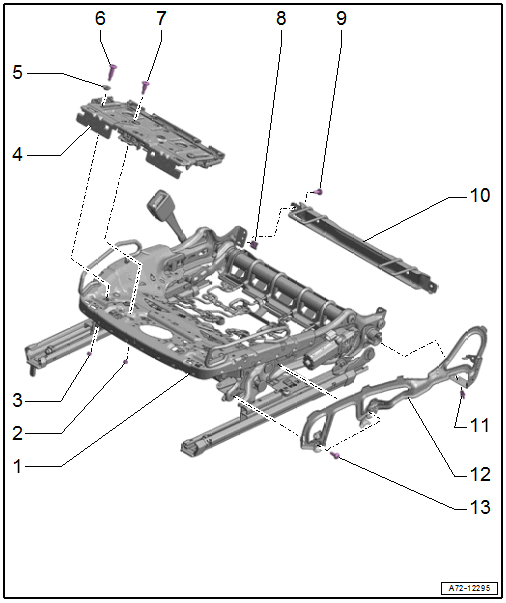

Fig 1: Exploded View Of Seat Pan, Seat With Seat Depth Adjuster

Courtesy of AUDI OF AMERICA, LLC

Seat Pan
Nut
- 6.5 Nm
- Quantity: 2
Nut
- 6.5 Nm
- Quantity: 2
Seat Depth Adjuster
- Removing and Installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING .
Sleeve
- Quantity: 2
Bolt
- Quantity: 2
Bolt
- Quantity: 2
Spring Nut
- Replace any damaged or deformed spring nuts
- Attached in the seat pan
- Quantity: 2
Bolt
- Tightening specification. Refer to -Item 4- OVERVIEW - FRONT CHILD SEAT ANCHORS - Bolt .
- Quantity: 2
Child Seat Anchor/Super Sport Seat Cross Bar
- Replace damaged or deformed child seat anchor
- Equipped on some models: child seat anchor only front passenger seat
- Bolted to the seat pan
- Child seat anchor checking after a collision. Refer to CHILD SEAT ANCHORS, CHECKING AFTER COLLISION .
- Overview - child seat anchor. Refer to OVERVIEW - FRONT CHILD SEAT ANCHORS .
Expanding Clip
Bracket
- For seat side trim on side sill side
- Removing and Installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .
Bolt
- 7.5 Nm
- Quantity: 2
