Overview - Seat Pan, Power Seat Forward/Back And Height Adjustment

WARNING: This page is about a different variant/trim than selected.

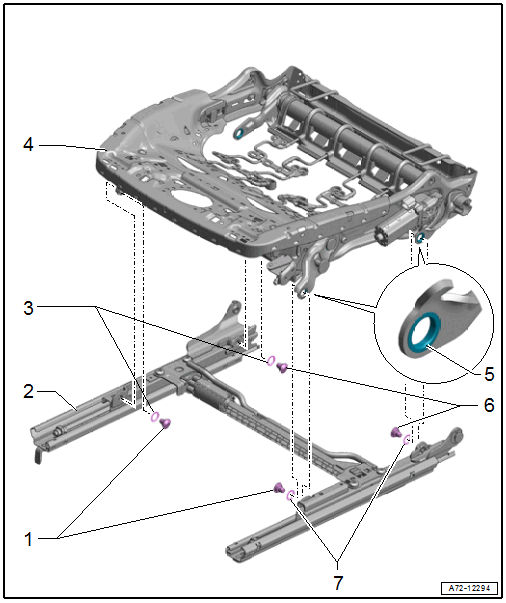

Fig 1: Exploded View Of Seat Pan, Power Seat Forward/Back And Height Adjustment

Courtesy of AUDI OF AMERICA, LLC

Bolts
- 22 Nm
- Replace after removing.
- Clean the threaded hole for the bolt with a thread tap, for example
- Self-locking
Seat Pan Lower Frame
- With forward/back adjustment motor
- Removing and Installing. Refer to LOWER FRAME, REMOVING AND INSTALLING, SEAT FORWARD/BACK ADJUSTMENT MOTOR .
Thrust Washers
- No longer installed after removing
Seat Pan Upper Frame
- With height adjustment motor
- To replace, install all electrical and electronic components and wires in the new upper frame.
- Removing and Installing. Refer to UPPER FRAME, REMOVING AND INSTALLING, SEAT HEIGHT ADJUSTMENT MOTOR .
Bushing
Bolts
- 22 Nm
- Replace after removing.
- Self-locking
- Clean the threaded hole for the bolt with a thread tap, for example
Thrust Washers
- No longer installed after removing
