Overview - Seat Pan, Fire Extinguisher

WARNING: This page is about a different variant/trim than selected.

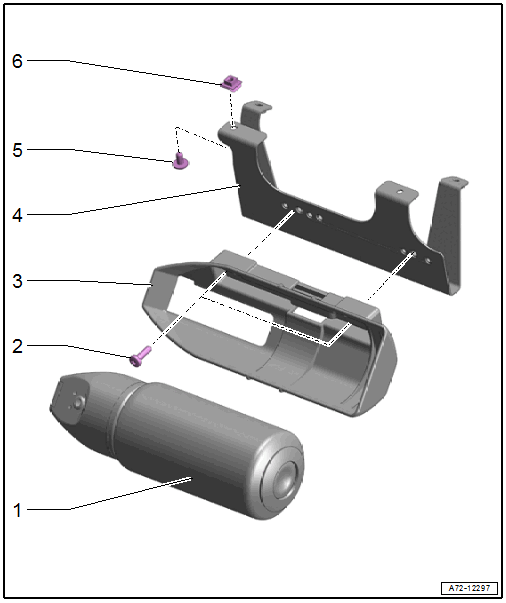

Fig 1: Exploded View Of Seat Pan, Fire Extinguisher
GWWA72-12297Courtesy of AUDI OF AMERICA, LLC
  1. Fire Extinguisher
  2. Bolt
    • 7.5 Nm
    • Quantity: 2
  3. Fire Extinguisher Mount
  4. Bracket
  5. Bolt
    • 7.5 Nm
    • Quantity: 4
  6. Spring Nut
    • Replace any damaged or deformed spring nuts
    • Attached in the seat pan
    • Quantity: 4
