Overview - Headrest, Height And Depth-Adjustable

WARNING: This page is about a different variant/trim than selected.

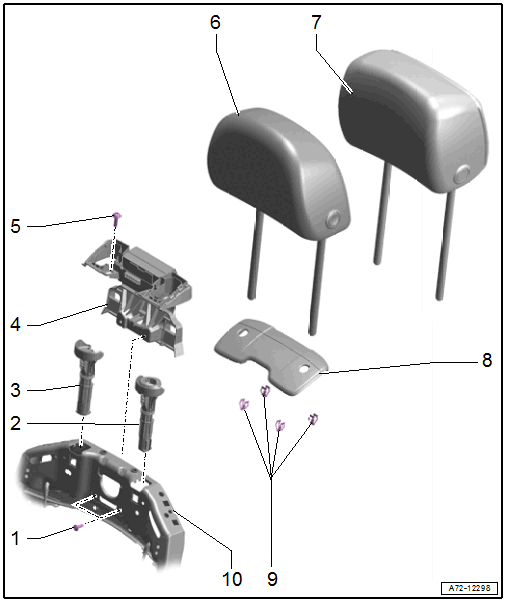

Fig 1: Exploded View Of Headrest

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2.8 Nm
- Quantity: 2
Left Headrest Guide
- With headrest release ring
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, HEADREST WITH HEIGHT AND DEPTH ADJUSTER .
- Press until all three retainers are completely locked into the backrest frame
Right Headrest Guide
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, HEADREST WITH HEIGHT AND DEPTH ADJUSTER .
- Press until all three retainers are completely locked into the backrest frame
Support
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
Bolt
- 2.8 Nm
- Only equipped on models with Rear Seat Entertainment System (RSE)
- Quantity: 2
Headrest
- Manual/power height adjustment
- Cannot be disassembled
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING, HEADREST WITH HEIGHT AND DEPTH ADJUSTER .
- Must be correctly locked in the headrest guides
Headrest
- Manual/power height adjustment
- Manual depth adjustment
- Cannot be disassembled
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING, HEADREST WITH HEIGHT AND DEPTH ADJUSTER .
- Must be correctly locked in the headrest guides
Trim
- For the headrest
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING, HEADREST WITH HEIGHT AND DEPTH ADJUSTER .
Clips
Backrest Frame
