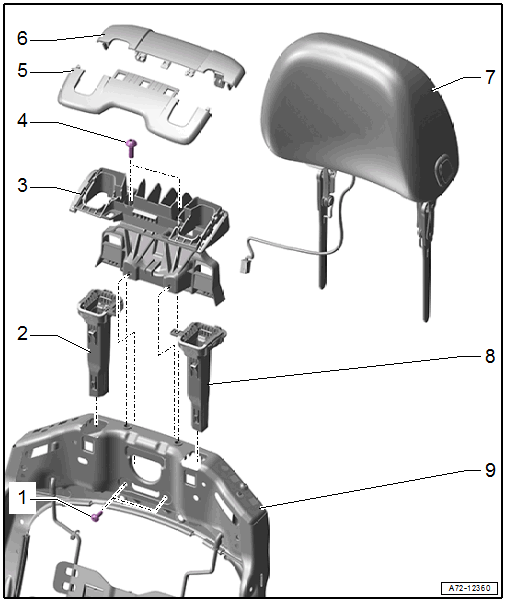

Overview - Headrest, Height And Angle-Adjustable
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 2.8 Nm
- Quantity: 2
- Right Headrest Guide
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, HEADREST WITH HEIGHT AND ANGLE ADJUSTER .
- Press until all three retainers are completely locked into the backrest frame
- Support
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, HEADREST WITH HEIGHT AND ANGLE ADJUSTER .
- Bolt
- 2.8 Nm
- Only equipped on models with Rear Seat Entertainment System (RSE)
- Quantity: 2
- Front Trim
- For the headrest
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING, HEADREST WITH HEIGHT AND ANGLE ADJUSTER .
- Rear Trim
- For the headrest
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING, HEADREST WITH HEIGHT AND ANGLE ADJUSTER .
- Headrest
- Manual/power height adjustment
- Manual angle adjustment
- Cannot be disassembled
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING, HEADREST WITH HEIGHT AND ANGLE ADJUSTER .
- Must be correctly locked in the headrest guides
- Left Headrest Guide
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, HEADREST WITH HEIGHT AND ANGLE ADJUSTER .
- Press until all three retainers are completely locked into the backrest frame
- Backrest Frame
